Product description: QY260 drilling rig
INQUIRY

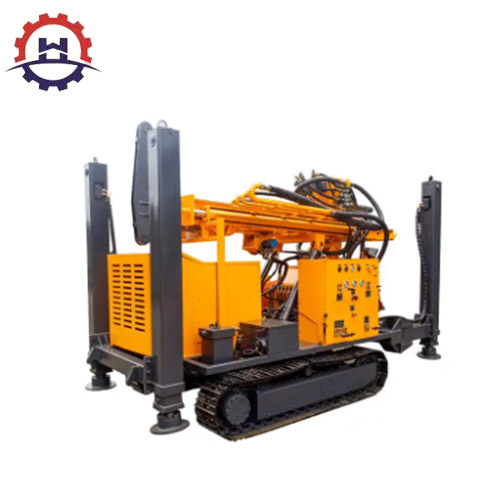

QY260 drilling rig

Features

1. The drilling rig adopts new hydraulic technology, equipped with high torque hydraulic motor rotation and large diameter hydraulic cylinder for propulsion. The famous brand engine provides power for the hydraulic system, and the two-stage air filter and the intake design of the compressed air extend the service life of the diesel engine.

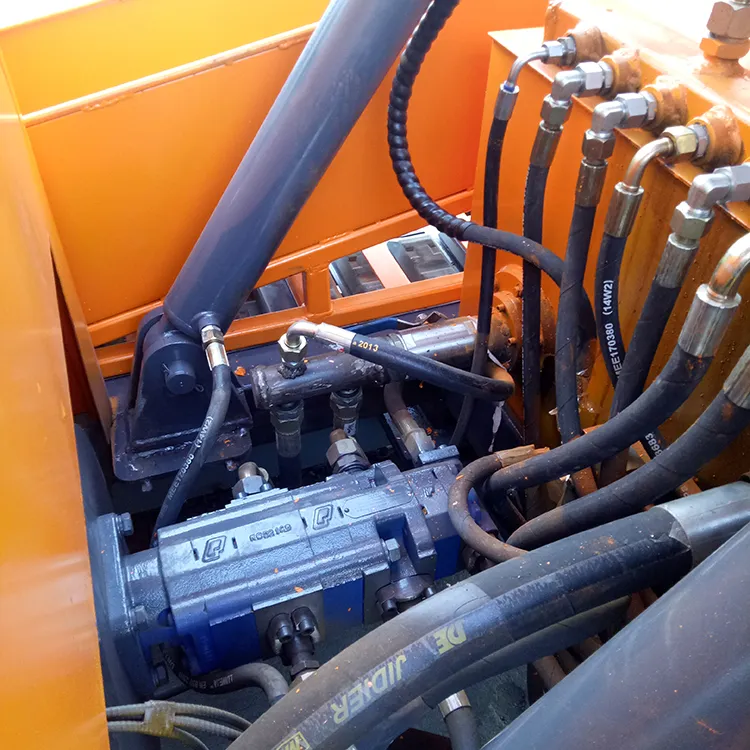

2. The unique pump set design is convenient for maintenance and reduces maintenance costs. 3. Centrally controlled hydraulic console for easy operation. 4. This series of drilling rigs adopts excavator crawler chassis with strong off-road performance. 5. The independent module design allows the drilling rig to be easily mounted on a truck, increasing its mobility. 6. Two-speed rotation and advance speed can meet different drilling needs in soil and rock layers. 7. The combined positioner can be adjusted and replaced according to different types of drill pipes and impactors to ensure accurate and reliable positioning and centering. 8. The structure of the hoist is convenient for the hoisting of the drill pipe and the impactor, and reduces the labor intensity.

Details Show

钻机能力 Drilling capacity	钻深 Drilling depth	260m
	钻孔(钻头)直径 Borehole (Drill bit) dia.	Ø115～Ø350mm
给进系统 Feeding system	提升力 Lifting capacity	16 Ton
	推进力 Thrusting capacity	8 Ton
动力头参数 Drive head	回转转速 Rotary speed	40~160 r/min
	最大扭矩 Max. Torque	4000N.m
动力部分 Power Unit	柴油机型号 Engine Model	Yunnei engine YN33GBZ
	额定功率/转速 Rated power/speed	65kW/ 2400r/min
工具卷扬 Tool winch capacity		1.5 Ton
配套钻杆 Drill pipe	钻杆直径 Drill pipe dia.	Ø76/ Ø89mm
	钻杆长度 Drill pipe length	3000mm
配套空压机 Air compressor	耗气总量 Air consumption	16～35m³/min
	工作风压 Air pressure	10.5～24.6bar

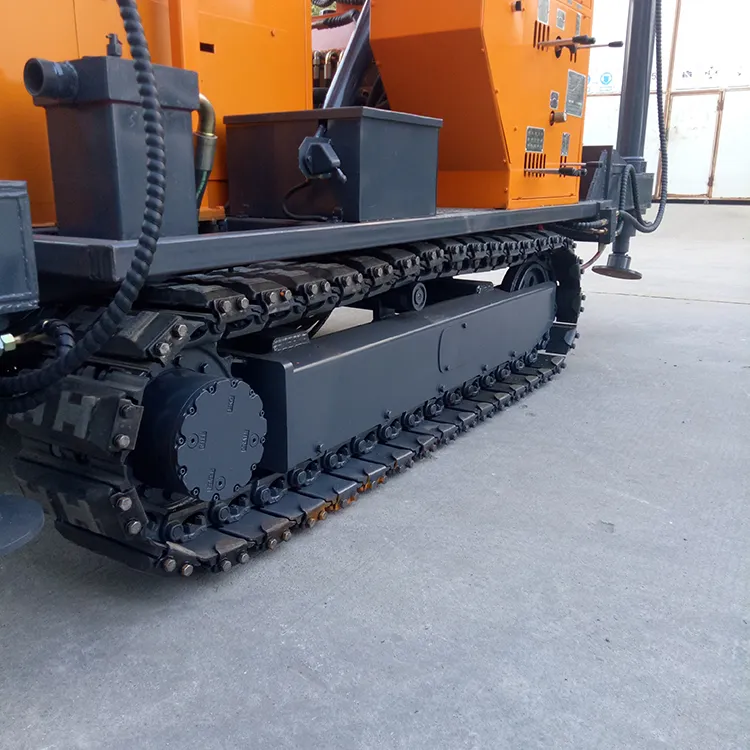

履带参数 Crawler chassis	行走速度Walking speed	0～3 km/h
	爬坡能力 Climbing angle	Max. 25°
整机尺寸 Dimension	运输状态 Transport	400018002500mm
	工作状态 Working	380028006800mm
整机重量 Weight		6000kg
