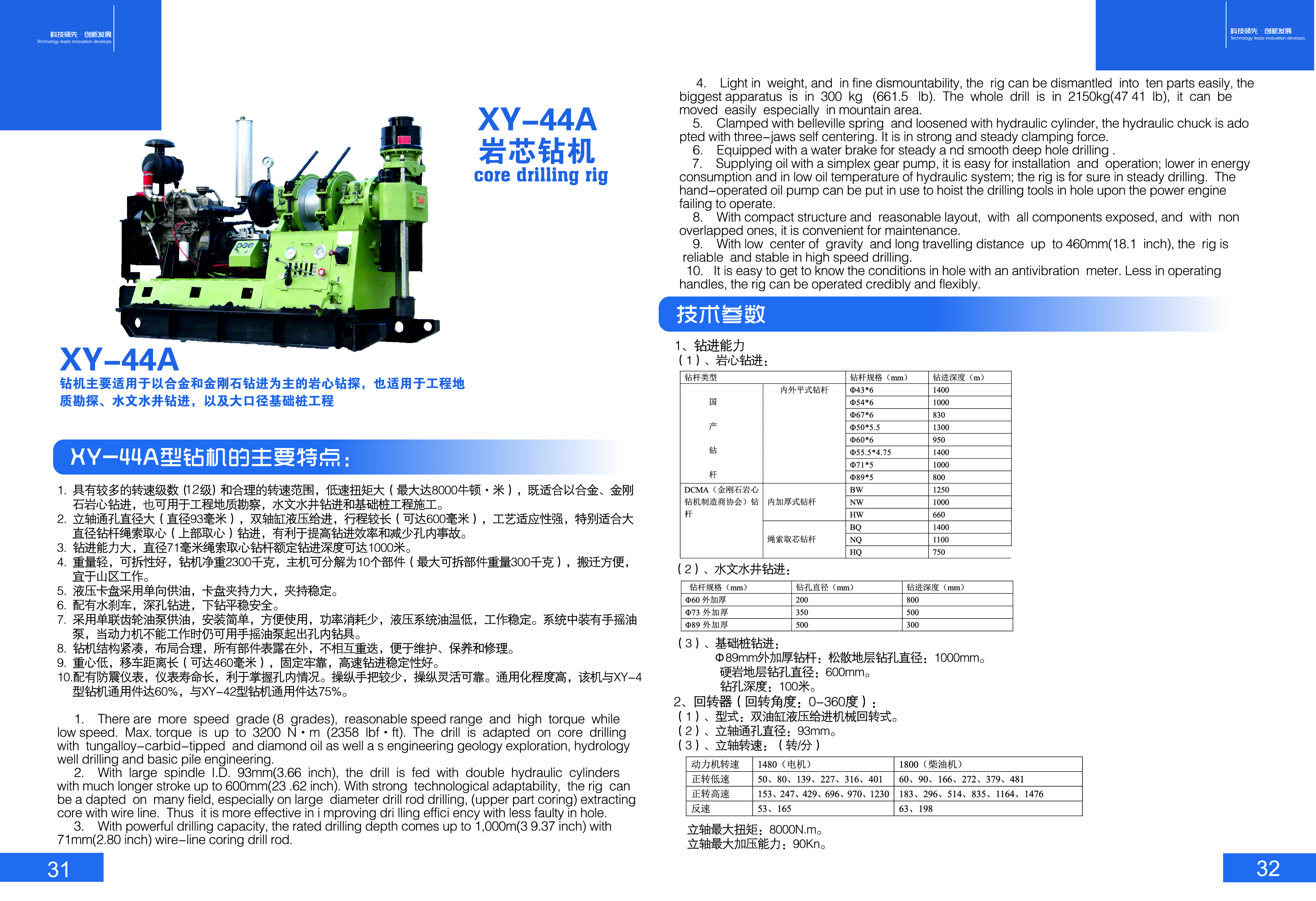

1、 Overview of XY-44A hydraulic water well drill



XY-44A geological exploration drilling rig is a new product designed on the basis of XY-44 drilling rig. In addition to the technical performance parameters of the above two types of drilling rig, the vertical shaft feed part is added with a guide rod structure; Equipped with water brake and hand pressure oil pump.

XY-44A km drilling rig is mainly applicable to core drilling with alloy and diamond drilling as well as engineering geological exploration, hydrological well drilling and large-diameter foundation pile construction.



2、 Main features of XY-44A hydraulic water well drill

1. With a large number of rotational speed steps (8 levels) and a reasonable rotational speed range, and a large low-speed torque ("zui" up to 3200 N · m), it is not only suitable for drilling with alloy and diamond cores, but also for engineering geological survey, hydrological well drilling and foundation pile construction.

2. The diameter of vertical shaft through-hole is large (93 mm in diameter), the hydraulic feed of double-shaft cylinder is long (up to 600 mm), and the process adaptability is strong. It is especially suitable for wire-line coring (upper coring) drilling of large diameter drill pipe, which is conducive to improving drilling efficiency and reducing accidents in the hole.

3. The drilling capacity is large, and the rated drilling depth of 71mm diameter wireline coring drill pipe can reach 1000m.

4. Light weight, good demountability, net weight of 2300 kg, main machine can be decomposed into 10 parts ("zui" large demountable parts weight 300 kg), easy to move, suitable for working in mountainous areas.

5. The hydraulic chuck adopts one-way oil supply, with large clamping force and stable clamping.

6. Equipped with hydraulic brake, deep hole drilling, stable and safe tripping.

7. Single gear oil pump is used for oil supply, which is simple to install, convenient to use, low power consumption, low oil temperature of hydraulic system and stable operation. The system is equipped with a hand pump. When the power machine cannot work, the hand pump can still be used to pull out the drilling tool in the hole.

8. The drilling rig is compact in structure and reasonable in layout. All parts are exposed without overlapping each other, which is convenient for maintenance, repair and repair.

9. Low center of gravity, long moving distance (up to 460 mm), firm fixation, and good stability in high-speed drilling.

10. Equipped with shockproof instrument, the instrument has a long service life, which is conducive to mastering the situation in the hole. There are few handlebars for flexible and reliable operation.

Model		XY-44A
Core Drilling
Drill rod		Standard（mm）	Depth（m）
Chinese manufactured rods	Internal upset type	43*6	1400
		54*6	1000
		67*6	830
	Wire-line coring	55.5	1250
		71	1000
		89	800
DCDMA rods		BQ	1300
		NQ	1000
		HQ	750
		PQ	420
	External upset type	60mm	800
		73mm	500
		89mm	300
Drilling angle		0°～360°
Power unit	Model	Power	REV
Electric	Y225S-4	37KW	1480 r/min
Diesel	YC4E135-21	103KW	2800 r/min
Gyrator
Hydraulic twin-cylinder feeding rotary type
Spindle inner diameter	φ93
Spindle rotating speed
Forward（r/min）	60/90/166/272/379/481/183/296/514/835/1164/1476
Reverse（r/min）	63/198
Max. Spindle torque	8000N·m
Spindle travel	600mm
Max. Spindle hoisting capacity	125KN
Max. Pressing capacity	90KN
Dimension		3050*1100*1920mm
Drill weight（without power unit）		2300kg
